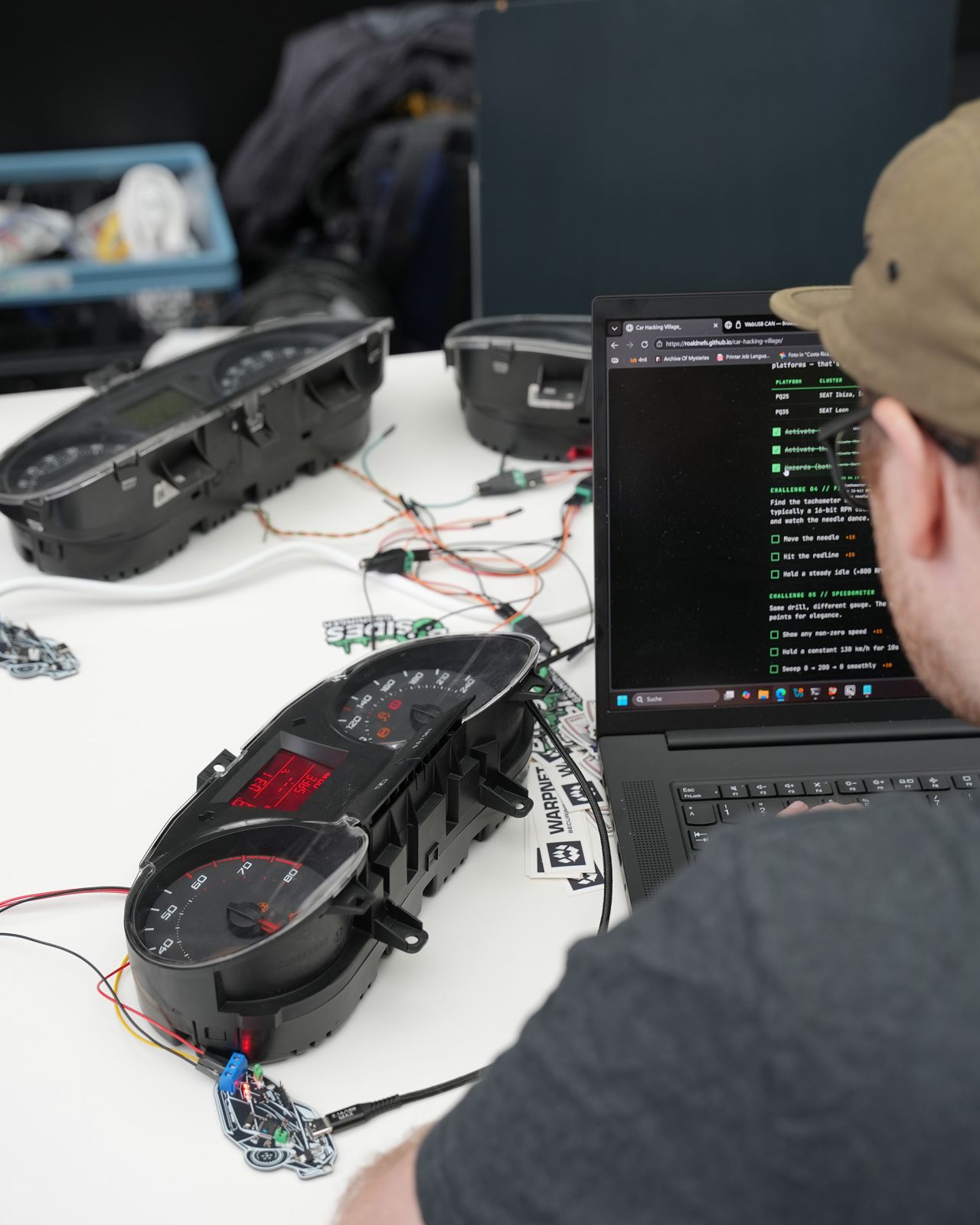

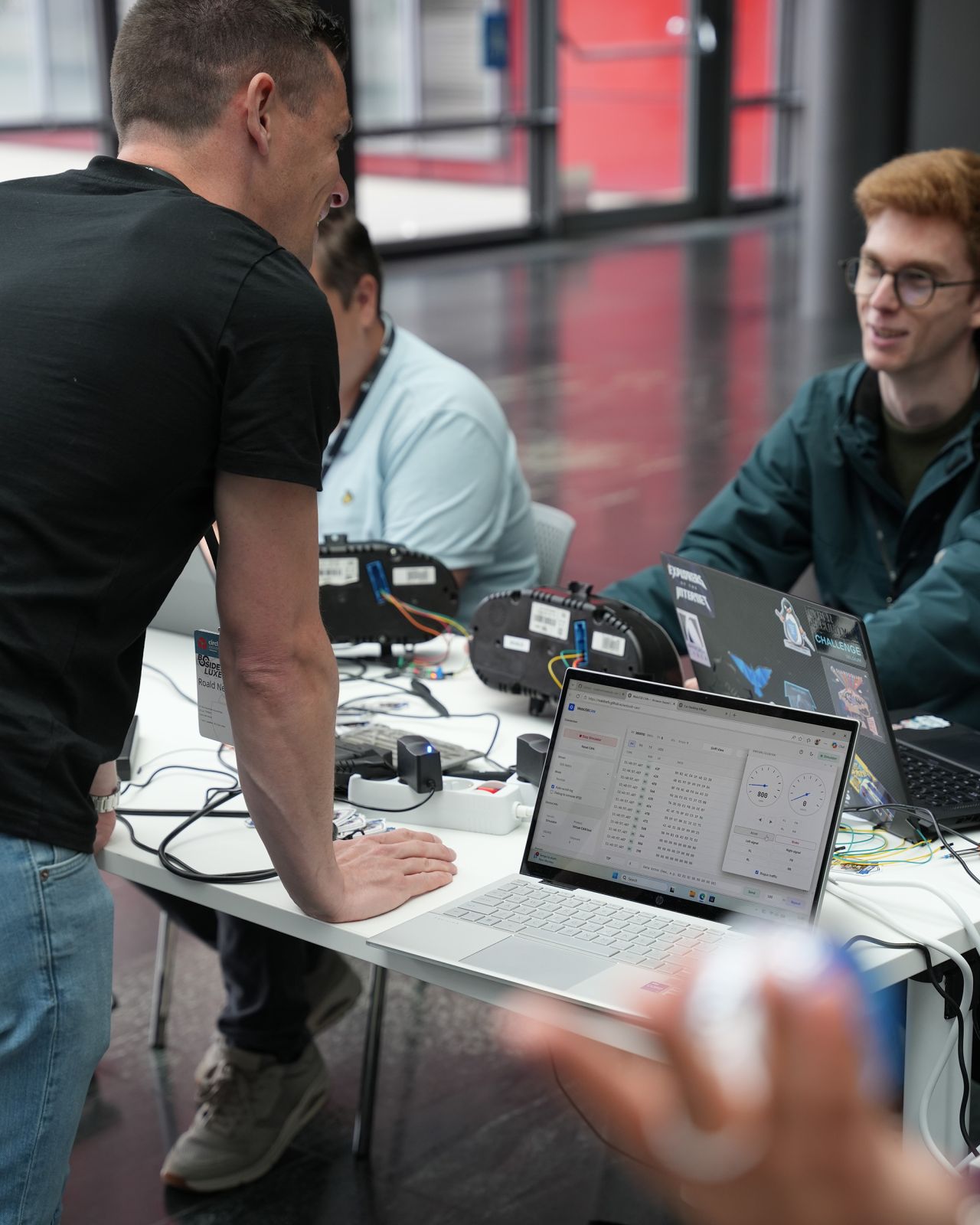

Photos by DLH at BSides Luxembourg 2026
Modern cars are rolling networks. Pressing the brake pedal, flicking the indicator, or seeing a fuel warning all happen because ECUs — small computers scattered through the car — exchange short broadcast messages on shared wires. Reading those messages, replaying them, and (responsibly) injecting new ones is the heart of car hacking. People do it for security research, restoring or modding older vehicles, motorsport telemetry, or just to learn how the rolling computer thinks.
CAN (Controller Area Network) is the most common in-vehicle bus — a two-wire differential pair (CAN-H / CAN-L) where every ECU shouts and every ECU listens. There's no addressing: each frame carries an 11-bit arbitration ID (think topic + priority) and up to 8 bytes of payload. Lower IDs win the bus when two nodes talk at once, so safety-critical traffic (brakes, airbags) sits at the front of the queue.
# a CAN frame as you'll see it in the console: 320#0510002A00000000 │ └─ up to 8 payload bytes (hex) └────── 11-bit arbitration ID (hex)
Full breakdown lives in the quick reference.
A modern car carries 50–100 ECUs, each a small embedded computer dedicated to one job: engine management, ABS, body control (lights, locks, indicators), the instrument cluster, the gateway to OBD-II, infotainment, airbag, climate. They all tap onto the same two wires in a linear bus — no master, no client, no addressing — just a shared loudspeaker. A 120Ω resistor at each end keeps the signal from echoing back.
Frames are broadcast. When the engine ECU posts an RPM update, it doesn't address it to anyone — it just shouts. The cluster picks it up to move the tacho, the gateway might forward it to the OBD-II port, everything else ignores it. That's why sniffing is move one (you read everyone's mail without asking), and why replay works — nothing on the bus knows whether a frame came from the real engine ECU or your laptop.
Clusters are passive listeners for most of what they display — speed, RPM, fuel level, lights, warnings — but they also talk back on the same bus (immobilizer dialogue, VIN, diagnostics). On the bench they're cheap, safe, and give instant visual feedback when a frame lands. No engine, no airbags, no insurance company. A good first stop before you ever touch a real car.
Most frames on the bus aren't sent once — they're periodic, re-broadcast every 10–100 ms whether anything changed or not. RPM, speed, fuel level: all heartbeat traffic. A handful are event-triggered: door opened, indicator flipped, gear shifted. If you replay a single periodic frame with a new value, the real ECU is still shouting the old value 10× per second and your change snaps back in a blink. To hold a value, you have to keep sending at roughly the same cadence — the WebUSB console's Send loop does this for you.
Many production frames also carry a rolling counter (often a 4-bit nibble that increments on every send) and a checksum or CRC in the payload. The receiver only accepts frames where both look right — replay an old frame verbatim and the cluster may quietly ignore it. The bench clusters in this village are forgiving on most IDs, but if a replay does nothing and the wiring checks out, suspect the counter first.
At your station you'll find a Volkswagen Group instrument cluster (Škoda Fabia, SEAT Ibiza, or SEAT Leon ~2010), a 12V power supply, and a USB-to-CAN adapter (CANable 2.0 or SH-C31A) running gs_usb / candleLight firmware.
No drivers. No installs. Everything runs in your browser via WebUSB.
Open the WebUSB CAN console — it's the same interface you'll use for every challenge below.
OPEN WEBUSB CAN CONSOLE
roaldnefs.github.io/webusb-can
Three connections, in order: power → CAN bus → laptop. Don't skip the checkpoints between steps — they catch wiring mistakes before they become hardware mistakes.
The cluster needs switched ignition and constant +12V, both grounded. The bench harness already has these tied off — just plug in the barrel jack from the supplied PSU.
Pin numbering is moulded into the connector body. Use a phone torch — they're tiny. The numbers above match the workshop's reference orientation: pin 17 top-left, pin 1 top-right, pin 32 bottom-left, pin 16 bottom-right (viewed from the wire side, with the latch up).
Two signal wires from the adapter into the cluster's CAN bus, plus a shared ground.
| Adapter terminal | Cluster pin | Wire color (typ.) |
|---|---|---|
| CAN-H | 28 | yellow |
| CAN-L | 29 | green |
| GND | 16 | black |
Plug the adapter's USB end into your laptop, then in the WebUSB CAN console:
500000Work through these at your own pace. Bring your sheet to the village desk when you've cleared a few — there are stickers.
Watch the live frame view. The cluster is broadcasting dozens of messages per second. Identify which arbitration IDs are recurring with stable data (boring heartbeat) versus those whose payloads shift over time.
The orange wheel warning is the cluster missing its handshake. Inject the immobilizer frame to silence it.
# In the WebUSB console "Send" panel: ID: 3D0 Data: 00 00 00 00 00 00 00 00 Mode: cyclic, every 100 ms
No orange wheel on your cluster? Some are shipped with the immobilizer function disabled in EEPROM. Swap the ID for 050 to spoof the airbag warning instead — same payload, same cadence. The objectives below count either way.
The cluster quietly broadcasts its own Vehicle Identification Number. The 17-character string is split across three consecutive frames on the same ID, each carrying a chunk of the VIN as raw ASCII bytes. A hex-to-ASCII conversion is all that stands between you and the full number.
Hint: scan the live frame view for an ID whose payload sits in the printable-ASCII range (roughly 0x30–0x5A). The first byte of each frame is the chunk index (00, 01, 02) — the rest is the text.
Make the cluster blink. The arbitration ID and payload differ between platforms — that's part of the puzzle.
| Platform | Cluster | Hint |
|---|---|---|
| PQ25 | SEAT Ibiza, Škoda Fabia | Look around 0x470 |
| PQ35 | SEAT Leon | Different ID — fuzz or research |
Find the tachometer message and pin the needle to the redline. The value is typically a 16-bit RPM count, big-endian, scaled — start by sweeping values and watch the needle dance.
Use the console's random/incremental send mode to fuzz a single arbitration ID and observe what wakes up. Document anything weird.
Same drill, different gauge — but this one fights back. The cluster doesn't trust a single value: it sanity-checks the speed signal against the ABS wheel speeds, and if they disagree it ignores you. You'll need to send several CAN IDs together (in quick succession, every ~10–20 ms) and keep their values consistent — e.g. claiming 130 km/h on the speedometer ID only works if the wheel speeds say the same thing.
A bit of online research goes a long way here. Open-source PQ25 cluster simulators on GitHub spell out exactly which IDs need to agree and how each value is encoded.
| ID | Function | Notes |
|---|---|---|
| 0x050 | Airbag | All zeros = OK |
| 0x1A0 | ABS | — |
| 0x280 | Engine RPM | Bytes 2–3 = RPM × 4 (LE) |
| 0x288 | Coolant temp | Byte 1 (0x9A ≈ 80 °C) |
| 0x320 | Cluster status (Kombi 1) | Emitted by cluster — don't send |
| 0x3D0 | Immobilizer | All zeros, cyclic ~100 ms |
| 0x470 | Turn signals (PQ25) | — |
| 0x480 | Engine warnings | All zeros = no warnings |
| 0x4A0 | Wheel speeds | LSB/MSB per wheel |
| 0x4A8 | Brake pressure | All zeros = not braking |
| 0x5A0 | Speedometer (odometer) | Bytes 5–6 = odo counter, 50/m |
Exact mappings vary by cluster, year, and software level. Verify by observation — that's half the fun.
ID: 123 # 11-bit hex, no 0x prefix DLC: 8 # 0–8 data bytes Data: DE AD BE EF 00 00 00 00
You need Chrome or Edge — Firefox and Safari don't ship WebUSB. Make sure no other program (a SocketCAN driver, a serial terminal) has the adapter open. Unplug and replug the USB cable.
The adapter must be running candleLight / gs_usb firmware. SLCAN-firmware adapters won't enumerate over WebUSB — ask a volunteer to swap it.
Check your bitrate is 500 kbit/s. Verify CAN-H goes to pin 28 and CAN-L to pin 29 (not swapped). The cluster also needs both the switched and constant 12V lines — a single one isn't enough to wake it.
Pull the barrel jack, count to five, plug back in. If a warning persists after a clean boot, flag a volunteer.
The whole stack lands somewhere around €75–€125: a CANable 2.0, a junkyard cluster from eBay, a 12V wall wart, and some jumper wire. Cluster prices vary wildly by model and seller — shop around. The full workshop slides (with command-line can-utils equivalents) are linked in the resources below.
